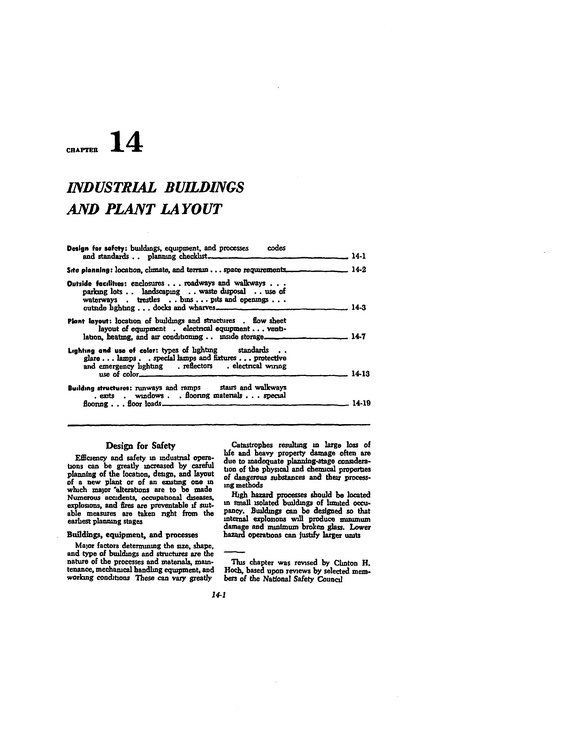

14CHAPTER INDUSTRIAL BUILDINGS AND PLANT LAYOUT Design for safety: buildings, equipment, and processes codes and standards . . planning checklist___________________________ ____________ 14-1 Site planning: location, climate, and terrain... space TM>T"*CT1,"*nK -- 14-2 Outside facilities: enclosures . . . roadways and walkways . . . parking lots . . landscaping . . waste disposal . . use of waterways . trestles . . bins ... pits and openings . . . outside lighting . . . docks and wharves . - --............ -- 14-3 Plant layout: location of buildings and structures . flow sheet layout of equipment . electrical equipment.. . venti lation, heatmg, and air conditioning .. inside storage - --. ..... 14-7 Lighting and use of color: types of lighting standards . .

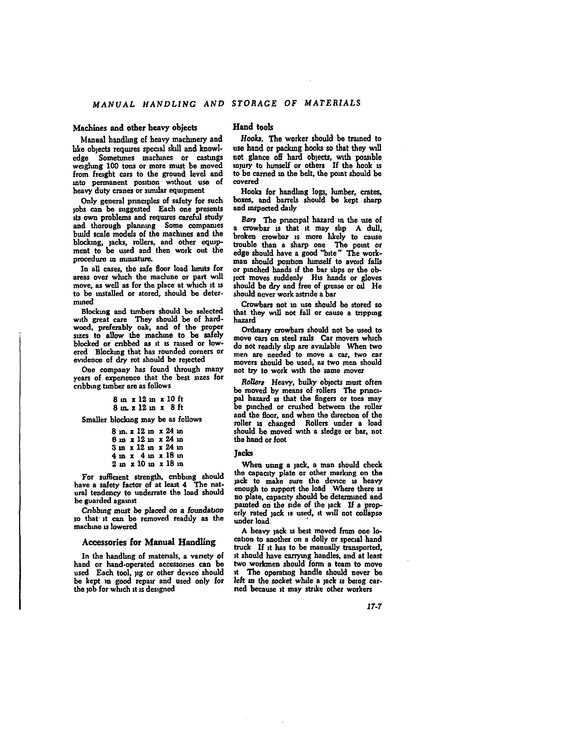

MANUAL HANDLING AND STORAGE OF MATERIALS Machines and other heavy objects Manual handling of heavy machinery and like objects requires special skill and knowl edge Sometimes machines or castings weighing 100 tons or more must be moved from freight cars to the ground level and into permanent position without use of heavy duty cranes or similar equipment Only general principles of safety for such jobs can be suggested Each one presents its own problems and requires careful study and thorough planning Some companies build scale models of the machines and the blocking, jacks, rollers, and other equip ment to be used and then work out the procedure in miniature.

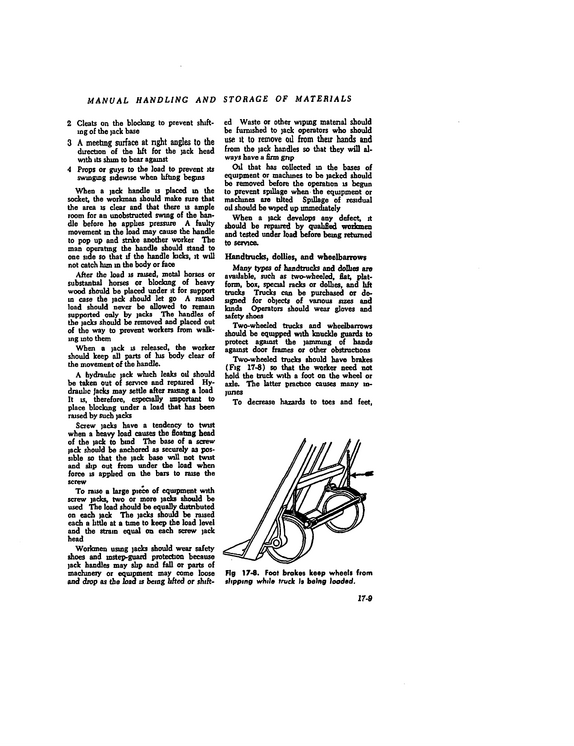

MANUAL HANDLING AND STORAGE OF MATERIALS 2 Cleats on the blocking to prevent shift ing of the jack base 3 A meebng surface at right angles to the direction of the lift for the jack head with its shun to bear against 4 Props or guys to the load to prevent its swinging sidewise when lifting begins When a jack handle is placed in the socket, the workman should make sure that the area is clear and that there is ample room for an unobstructed swing of the han dle before he applies pressure A faulty movement in the load may cause the handle to pop up and strike another worker The man operating the handle should stand to one side so that if the handle kicks, it will not catch him in the body or face After the load is raised, metal horses or substantial horses or blocking of heavy wood should be placed under it for support m case the jack should let go A raised load should never be allowed to remain supported only by jacks The handles of the jacks should be removed and placed out of the way to prevent workers from walk ing into them When a jack is released, the worker should keep all parts of his body clear of the movement of the handle.

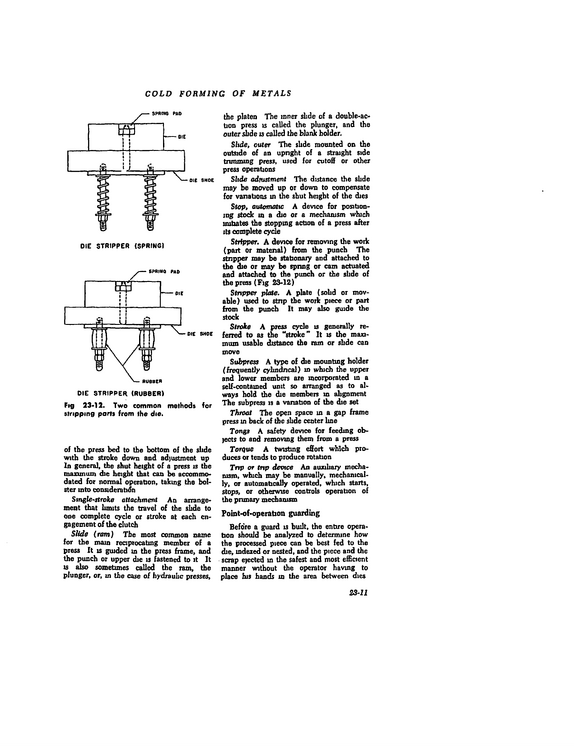

COLD FORMING OF METALS DIE STRIPPER (SPRING) DIE SHOE DIE STRIPPER (RUBBER) Fig 23-12.

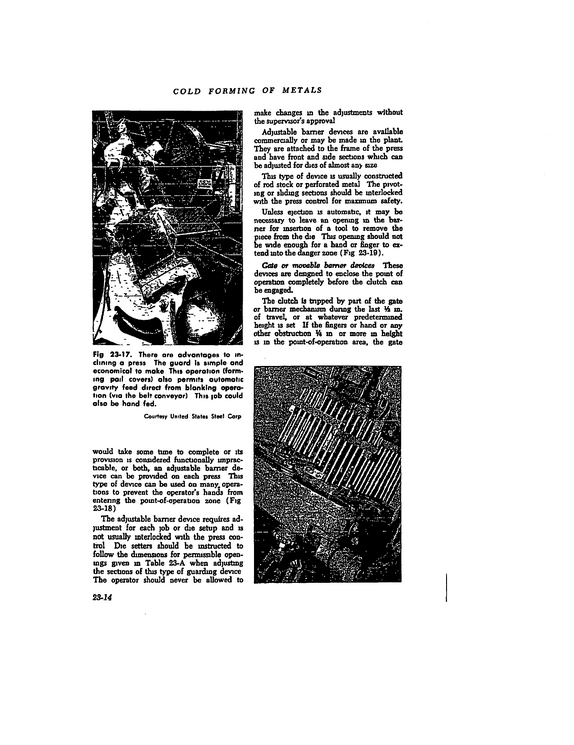

COLD FORMING OF METALS Fig 23-17.

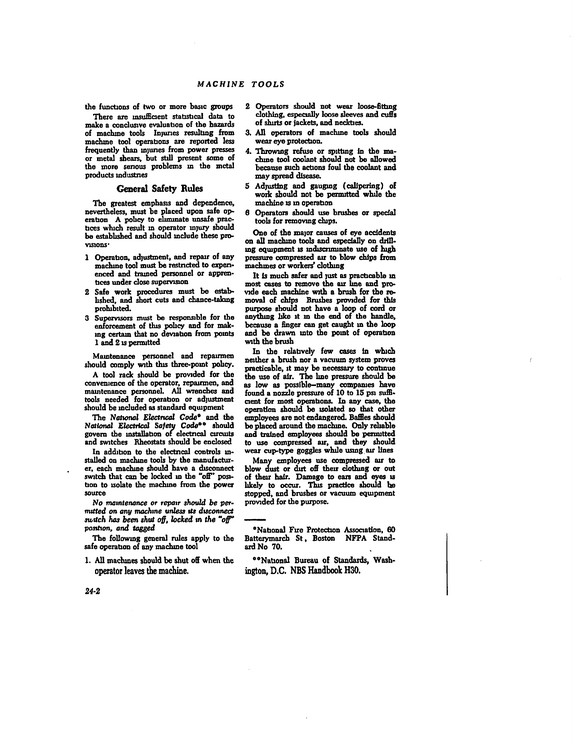

MACHINE TOOLS the functions of two or more basic groups There are insufficient statistical data to make a conclusive evaluation of the hazards of machine tools Injuries resulting from machine tool operations are reported less frequently than injuries from power presses or metal shears, but still present some of the more senous problems in the metal products industries General Safety Rules The greatest emphasis and dependence, nevertheless, must be placed upon safe op eration A policy to eliminate unsafe prac tices which result m operator injury should be established and should include these pro visions' 1 Operation, adjustment, and repair of any machine tool must be restricted to experi enced and trained personnel or appren tices under close supervision 2 Safe work procedures must be estab lished, and short cuts and chance-taking prohibited. 3 Supervisors must be responsible for the enforcement of this policy and for mak ing certain that no deviation from points 1 and 2 is permitted Maintenance personnel and repairmen should comply with this three-point policy.

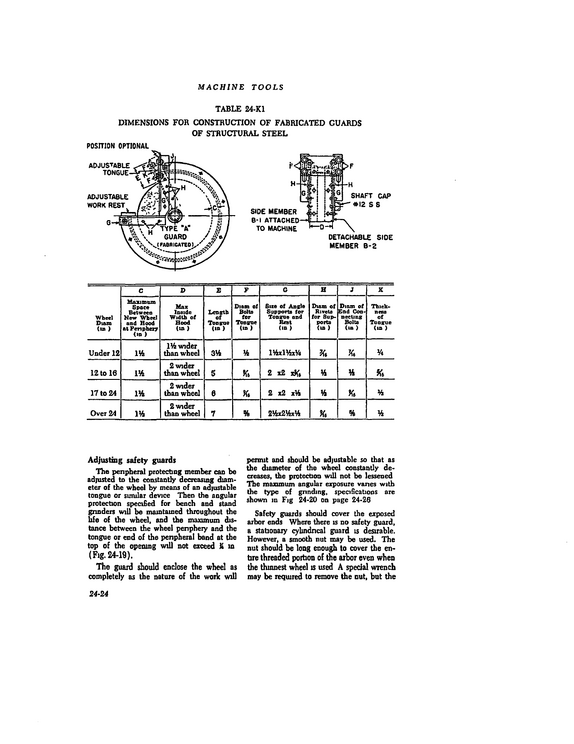

MACHINE TOOLS TABLE 24-K1 DIMENSIONS FOR CONSTRUCTION OF FABRICATED GUARDS OF STRUCTURAL STEEL POSITION OPTIONAL ADJUSTABLE TONGUE ADJUSTABLE WORK REST SIDE MEMBER B-l ATTACHED TO MACHINE SHAFT CAP #12 S S DETACHABLE SIDE MEMBER B-2 Wheel Drnm (in ) C Mnvimnwi Space Between New Wheel and Hood at Periphery (>n ) x> Max Inside Width of Hood (m ) F G a j X Length of Tongue (in ) Dibb of Bolts for Tongue (in ) Sue of Angle Supports for Tongue and Beat (id > Diam of Diam of Thick Rivets Bad Con ness for Sup necting of ports Bolts Tongue (u> ) (in ) (in ) 1% wider Under 12 i% than wheel 3% % lV4xl%x% % % % 12 to 16 1% 2 wider than wheel 5 % 2 x2 x% % Vi % 2 wider 17 to 24 i% than wheel 6 % 2 x2 x% % % % 2 wider Over 24 i% than wheel 7 % 2*6x2%x% % % % Adjusting safety guards The peripheral protecting member can be adjusted to the constantly decreasing diam eter of the wheel by means of an adjustable tongue or similar device Then the angular protection specified for bench and stand grinders will be maintained throughout the life of the wheel, and the maximum dis tance between the wheel periphery and the tongue or end of the ]ienpheral band at the top of the opening will not exceed X in (Fig. 24-19).

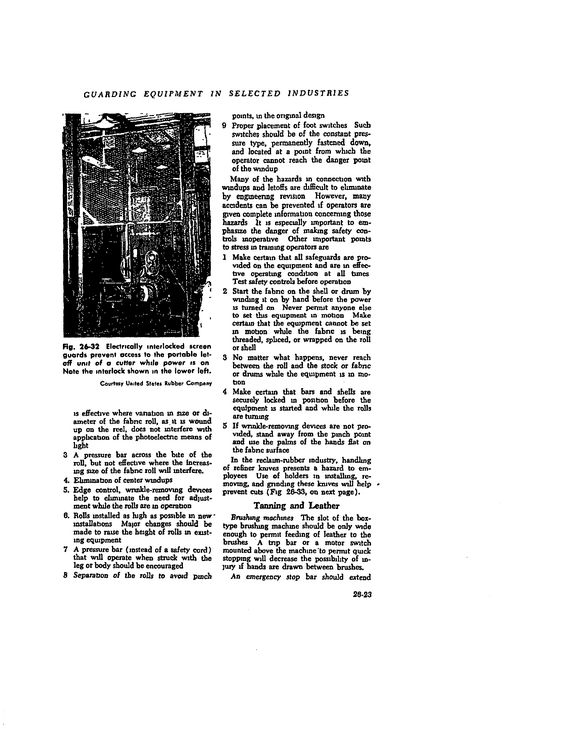

GUARDING EQUIPMENT IN SELECTED INDUSTRIES Fie- 26-32 Electrically interlocked screen guards prevent access to the portable letoff unit of a cutter while power is on Note the interlock shown in the lower left.

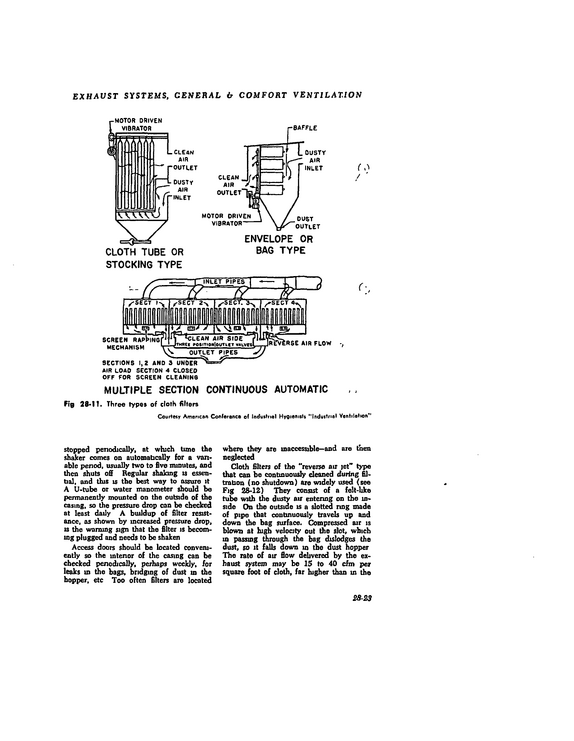

EXHAUST SYSTEMS, GENERAL ir COMFORT VENTILATION STOCKING TYPE SCREEN RAPl MECHANISM RSE AIR FLOW SECTIONS 1,2 AND 3 UNDER AIR LOAD SECTION 4 CLOSED OFF FOR SCREEN CLEANINS MULTIPLE SECTION CONTINUOUS AUTOMATIC Fig 28-1T.

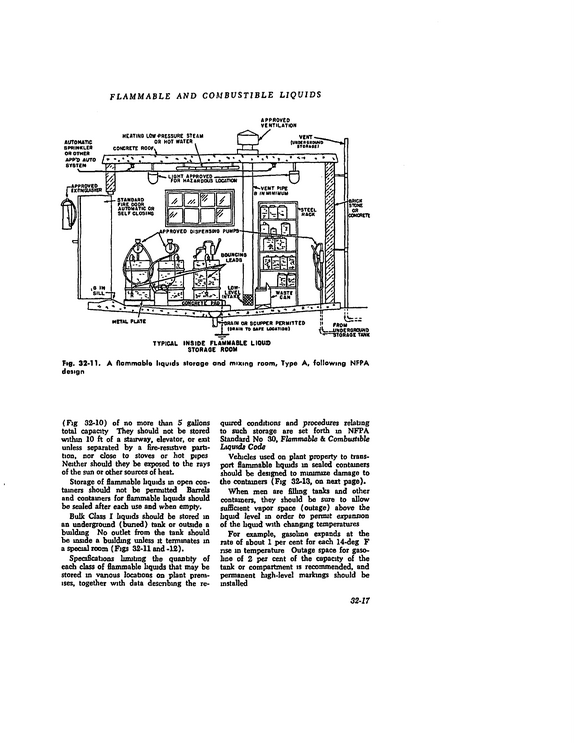

FLAMMABLE AND COMBUSTIBLE LIQUIDS APPROVED VENTILATION TYPICAL INSIDE FLAMMABLE LIQUID STORAGE ROOM Fig. 32-11.

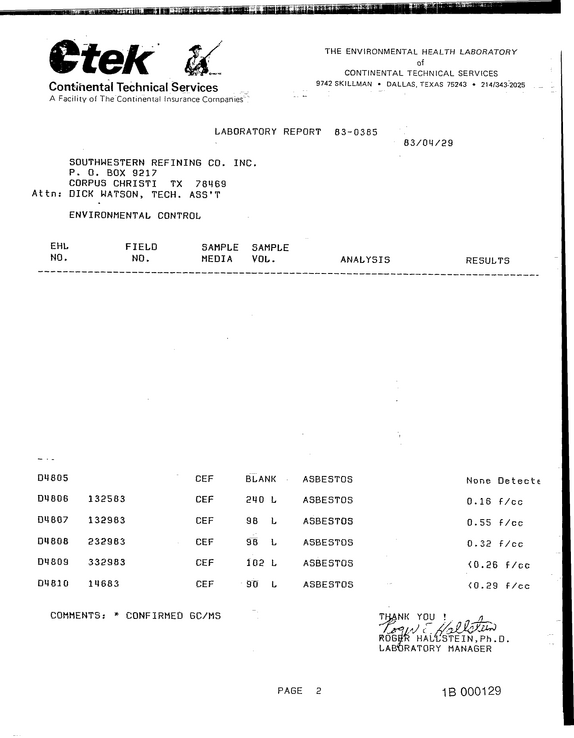

Ctek ContSfiental Technical Services A -scility of The Continenii insurance Cornoanies- THE ENVIRONMENTAL HEALTH LABORATORY RECErv'HTD of CONTINENTAL TECHNICAL SERVICES -.9742 SKILLMAN CaJ DALLAS, TEXAS 75243 214/343-2025 ;r..

APPJflO.Vtc Solasik (SIGNATUPEI HI un;yAfn>N rttOHOiHr.

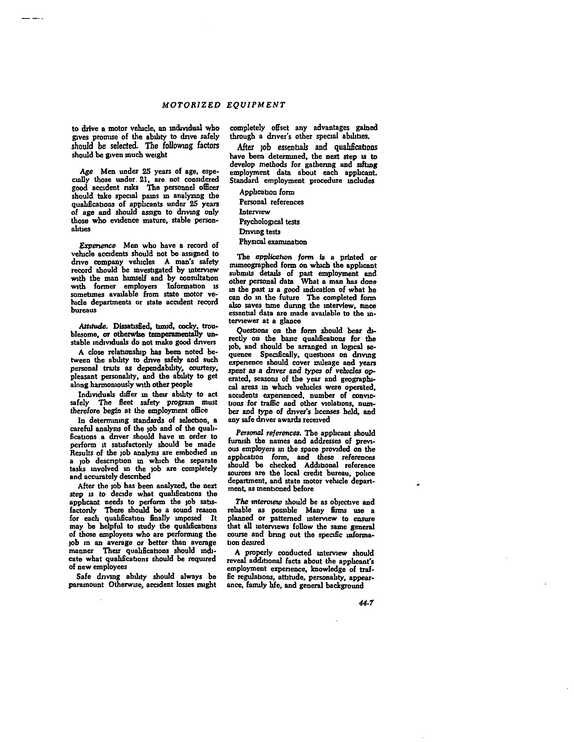

MOTORIZED EQUIPMENT to drive a motor vehicle, an individual who gives promise of the ability to dnve safely should be selected The following factors should be given much weight Age Men under 25 years of age, espe cially those under. 21, are not considered good accident risks The personnel officer should take special pains in analyzing the qualifications of applicants under 25 years of age and should assign to driving only those who evidence mature, stable person alities Experience Men who have a record of vehicle accidents should not be assigned to dnve company vehicles A man's safety record Bhould be investigated by interview with the roan himself and by consultation with former employers Information is sometimes available from state motor ve hicle departments or state accident record bureaus Attitude.
